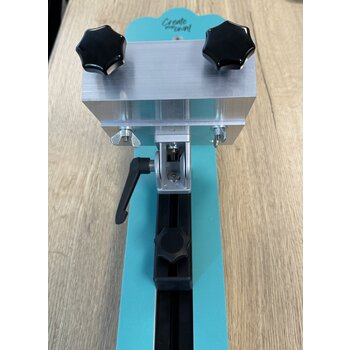

123Paracord JIG PRO Attaching the Clamp

Due to shipping, the hinge is not attached to the JIG. You can install it as follows:

• Place the two plastic rings as shown in FIG. 1 and FIG. 2. These go on the inside of the hinge (FIG. 3).

Fig. 1

Fig. 2

Fig. 3

• Place the steel ring and the bolt (Fig. 4) and tighten them with the included Allen wrench (Fig. 5).

Fig. 4

FIG. 5

• Place the steel ring and the handle (FIG. 6) and tighten them (FIG. 7).

FIG. 6

FIG. 7

Note: You cannot turn the handle all the way because the JIG is in the way. You can pull the handle outward and turn it backward. Then you can make the next turn (FIG. 8). Repeat this until the handle is secure.

FIG. 8
